CR-M0604 is a novel halogen-free flame retardant specifically developed for transparent semi-aromatic polyamide. It can get UL94-V0@0.8-1.6mm while maintaining the optical properties. Surprisingly, the physical and mechanical properties of the transparent nylon areenhanced, and its processing performance is significantly improved, with only a moderatedecline in thermal properties. The resulting flame-retardant transparent nylon is ideally suitedfor applications in electrical/electronics, automotive industries, electrical appliances, containers, and other fields.

1. Materials

Transparent PA：DuPond Selar 3426

Flame retardant：Inovia CR-M0604

2. Processing condition：

Drying：95-105℃，4h

Extrusion temperature：190-210℃

Injection temperature：210-220℃；mold temperature 40-50 ℃

3. Application Example Data

Table 1. Flame retardant performance

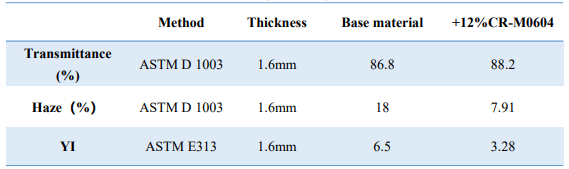

Table 2. Optical Properties

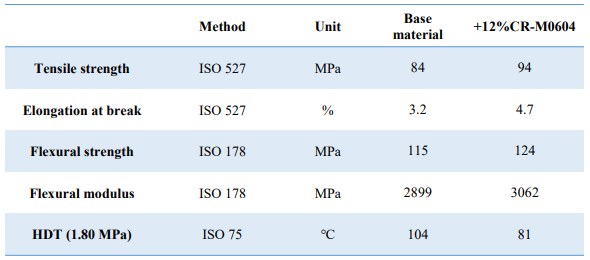

Table 3. Mechanical and Thermal Properties

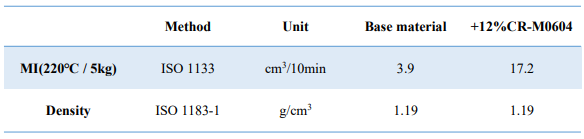

Table 4. Other Properties

 Note:The data recommended in this document can be used as a reference for various purposes. There will also be some amendments along with new technical improvements. Therefore, when designing the product, the use environment and structure of the product should be fully considered, and whether the product has any problems should be judgedbythe design company itself.
