CR-M1431is a blooming free retardant developed for glass fiber reinforced PA66. This product can be sold as powder or as masterbatch. It has great retarding efficiency，and the dosage level required to achieve the same UL V0 ratings is10-20% lower than those of Clariant products. What’s more, the flowing behavior and mechanical properties of the retarding resin is improved, compared to resins with Clariant retardants.

1. Materials

PA66: Shenma EPR-27

Retardant：CR-M1431(A masterbatch CR-M1431B is used in this testing.）

Glass fibre：megalith EDR14-2000-988A--30%

2. Processing

2.1 Drying：90℃，4~6h。

2.2 Extrusion temperature：240~285℃

2.3 Injection temperature：270~285℃；mold temperature：80~100℃

3. Application Example Data

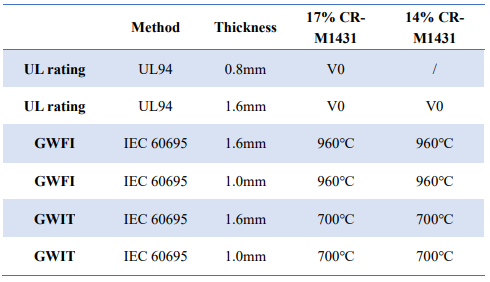

Table 1. Flame Retarding Properties

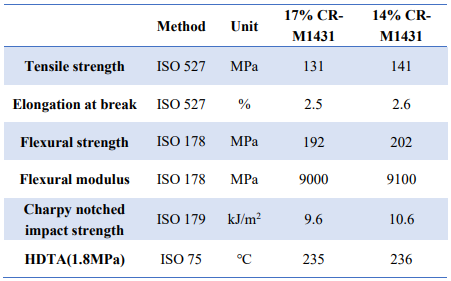

Table 2. Mechanical and thermal properties

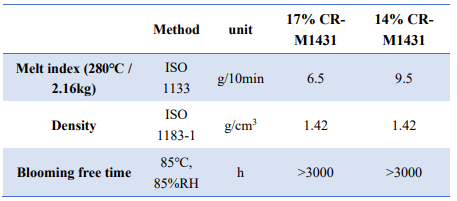

Table 3. Other properties

4.Summary

CR-M1431has outstanding blooming stability，can be stable up to 3000hrs under double 85 testing conditions。It also has superior retarding efficiency, and the dosage level required is lower, and in return the application cost is lower. What’s more, the flowing behavior and mechanical properties of the resins treated with CR-M1431 are notably improved, compared to the resin with Clariant products.

Reinforced PA66 Retardant CR-M1431_SDS.pdf

Reinforced PA66 Retardant CR-M1431_TDS.pdf
